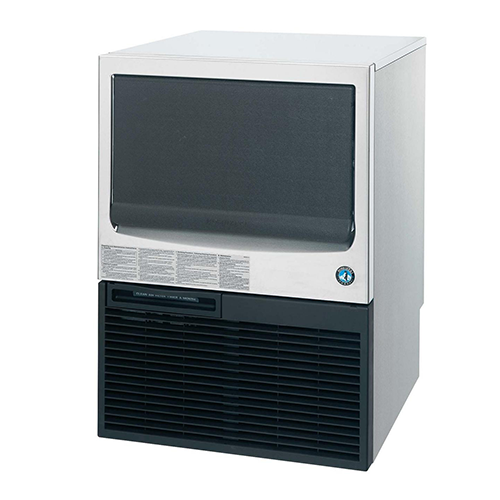

KM-75A

Hoshizaki Icemaker (Cresent) Up to 72kg

KM-75A
DIMENSIONS (WxDxH) 603 x 805 x 842 mm
PACKED DIMENSIONS  (WxDxH) 690 x 805 x 955 mm
WEIGHT (NETT/GROSS) 51 KG / 64 KG
AMPERAGE / STARTING AMPERAGE 3.0A / 13.3A
ELECTRICAL CONSUMPTION 412 W
REFRIGERANT CHARGE R134a/ 220g
HEAT REJECTION (AT32°C/WT21°C) 1050W (904 kcal/h)

OPERATING CONDITIONS: • Voltage Range: 198V-254V • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50 Hz

*60Hz units are available upon request
