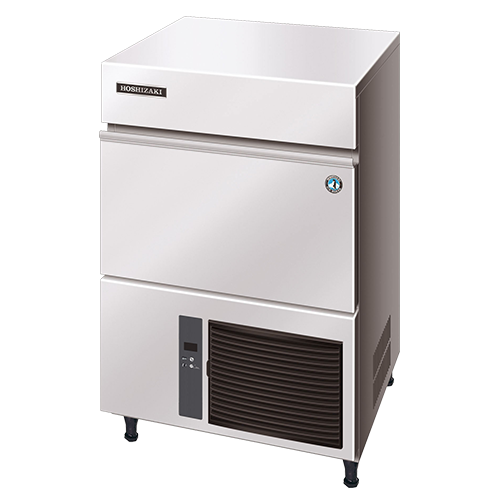

IM-65NE

Hoshizaki Icemaker (Cube) Up to 63kg

IM-65NE & IM-65NE-25
DIMENSIONS (WxDxH) Body : 633 x 506 x 840 mm /
Leg Height : 90-125 mm
PACKED DIMENSIONS  (WxDxH) 740 x 620 x 890 mm
WEIGHT (NETT/GROSS) 53 KG / 60 KG
AMPERAGE / STARTING AMPERAGE 2.9A / 17A
ELECTRICAL CONSUMPTION 400 W
REFRIGERANT CHARGE R134a
HEAT REJECTION (AT32°C/WT21°C) 800 W (690 kcal/h)

OPERATING CONDITIONS: • Voltage Range: 198V-254V • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50 Hz

*60Hz units are available upon request
