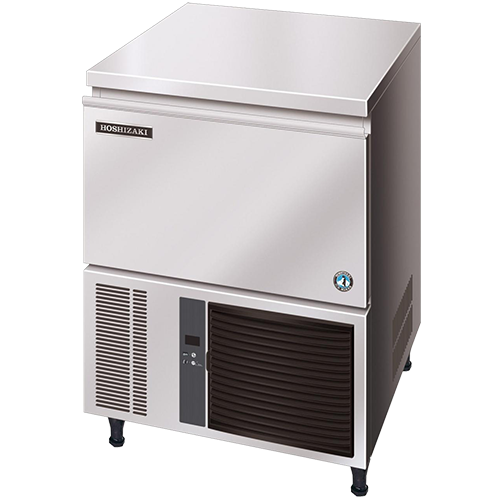

IM-45CNE

Hoshizaki Icemaker (Cube) Up to 44kg

IM-45CNE & IM-45CNE-25
DIMENSIONS (WxDxH) Body : 633 x 506 x 690 mm /
Leg Height : 90-125 mm
PACKED DIMENSIONS  (WxDxH) 740 x 620 x 890 mm
WEIGHT (NETT/GROSS) 48 KG / 55 KG
AMPERAGE / STARTING AMPERAGE 2.4A / 13A
ELECTRICAL CONSUMPTION 330 W
REFRIGERANT CHARGE R134a
HEAT REJECTION (AT32°C/WT21°C) 640 W (550 kcal/h)
STORAGE CAPACITY 15 KG

OPERATING CONDITIONS: • Voltage Range: 198V-254V • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50 Hz*60Hz units are available upon request
