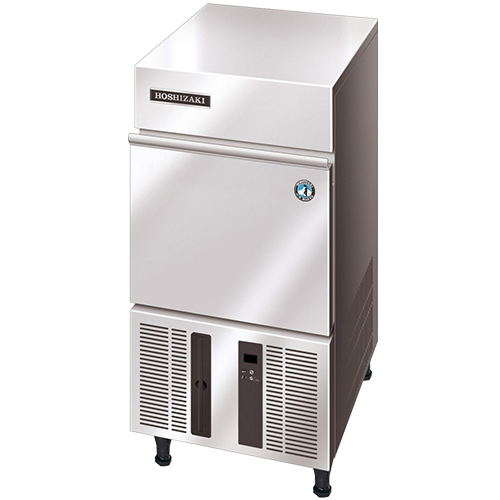

IM-30CNE

Hoshizaki Icemaker (Cube) Up to 23kg

IM-30CNE & IM-30CNE-25
EXTERNAL DIMENSIONS (WxDxH) Body : 398 x 446 x 695 mm /
Leg Height : 90-120 mm
PACKED DIMENSIONS (WxDxH) 505 x 575 x 880 mm
WEIGHT (NETT/GROSS) 34 KG / 38 KG
AMPERAGE / STARTING AMPERAGE 1.7A / 10A
ELECTRICAL CONSUMPTION 270 W
REFRIGERANT CHARGE R134a
HEAT REJECTION (AT32°C/WT21°C) 430 W (370 kcal/h)

OPERATING CONDITIONS: • Voltage Range: 198V-254V • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50 Hz*60Hz units are available upon request
