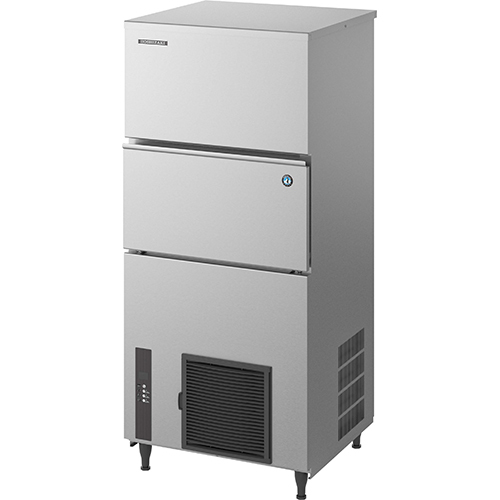

IM-240NE

Hoshizaki Icemaker (Cube) Up to 240kg

IM-240NE
DIMENSIONS (WxDxH) Body : 704 x 665 x 1510 mm  /
Leg Height : 90-130 mm
PACKED DIMENSIONS  (WxDxH) 840 x 785 x 1695 mm
WEIGHT (NETT/GROSS) 111 KG / 122 KG
AMPERAGE / STARTING AMPERAGE 6.6A / 35A
ELECTRICAL CONSUMPTION 1320 W
REFRIGERANT CHARGE R404a
HEAT REJECTION (AT32°C/WT21°C) 2870 W (2470 kcal/h)

OPERATING CONDITIONS: • Voltage Range: 198V-254V • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50 Hz

*60Hz units are available upon request
