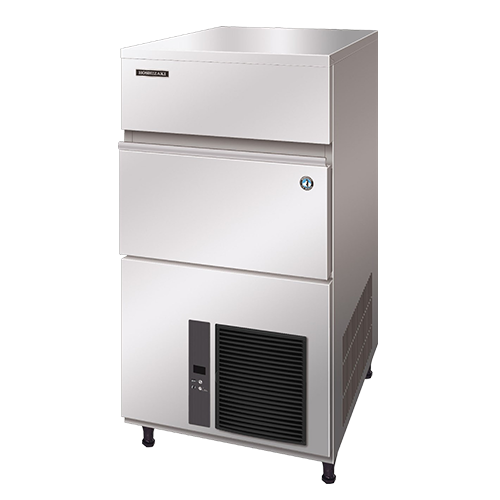

IM-130NE

Hoshizaki Icemaker (Cube) Up to 130kg

IM-65NE & IM-65NE-25
DIMENSIONS (WxDxH) Body : 704 x 506 x 1200 mm /
Leg Height : 90-130 mm
PACKED DIMENSIONS  (WxDxH) 830 x 620 x 1395 mm
WEIGHT (NETT/GROSS) 76 KG / 84 KG
AMPERAGE / STARTING AMPERAGE 4.5A / 19A
ELECTRICAL CONSUMPTION 700 W
REFRIGERANT CHARGE R134a
HEAT REJECTION (AT32°C/WT21°C) 1880 W (1620 kcal/h)

OPERATING CONDITIONS: • Voltage Range: 198V-254V • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50 Hz

*60Hz units are available upon request
